FEW Radiator Cap R117 - 118kPa 1.2kg

Reference No.

R117

Read moreShow less

$7.50

Add to Wishlist0

Tags:

5-86129669, 586129669, 5 86129669, 1N01-15-205, 1N0115205, 1N01 15 205, 1N03-15-205, 1N0315205, 1N03 15 205, 21430-30P00, 2143030P00, 21430 30P00, 21430-54P00, 2143054P00, 21430 54P00, 21430-74N00, 2143074N00, 21430 74N00, 21430-D9918, 21430D9918, 21430 D9918, 21430-D999A, 21430D999A, 21430 D999A

Description
Product Details

Description

Other Part Numbers	ISUZU	MAZDA	NISSAN
R117	• 5-86129669	• 1N01-15-205 • 1N03-15-205	• 21430-30P00 • 21430-54P00 • 21430-74N00 • 21430-D9918 • 21430-D999A

Specifications

Fig. No.	FEW No	Pressure		Upper Seal	A	B	C	D
Fig. No.	FEW No	[kg/cm²]	[kPa]	Upper Seal	[mm]	[mm]	[mm]	[mm]
1	R111	0.9	88	X	60	21	26	38
2	R112	0.9	88	O
2	R135	1.1	108	O
3	R121	0.5	49	X	60	14	24	38
3	R122	0.9	88	X
4	R123	0.9	88	O
	R161	0.7	69
	R191	0.5	49

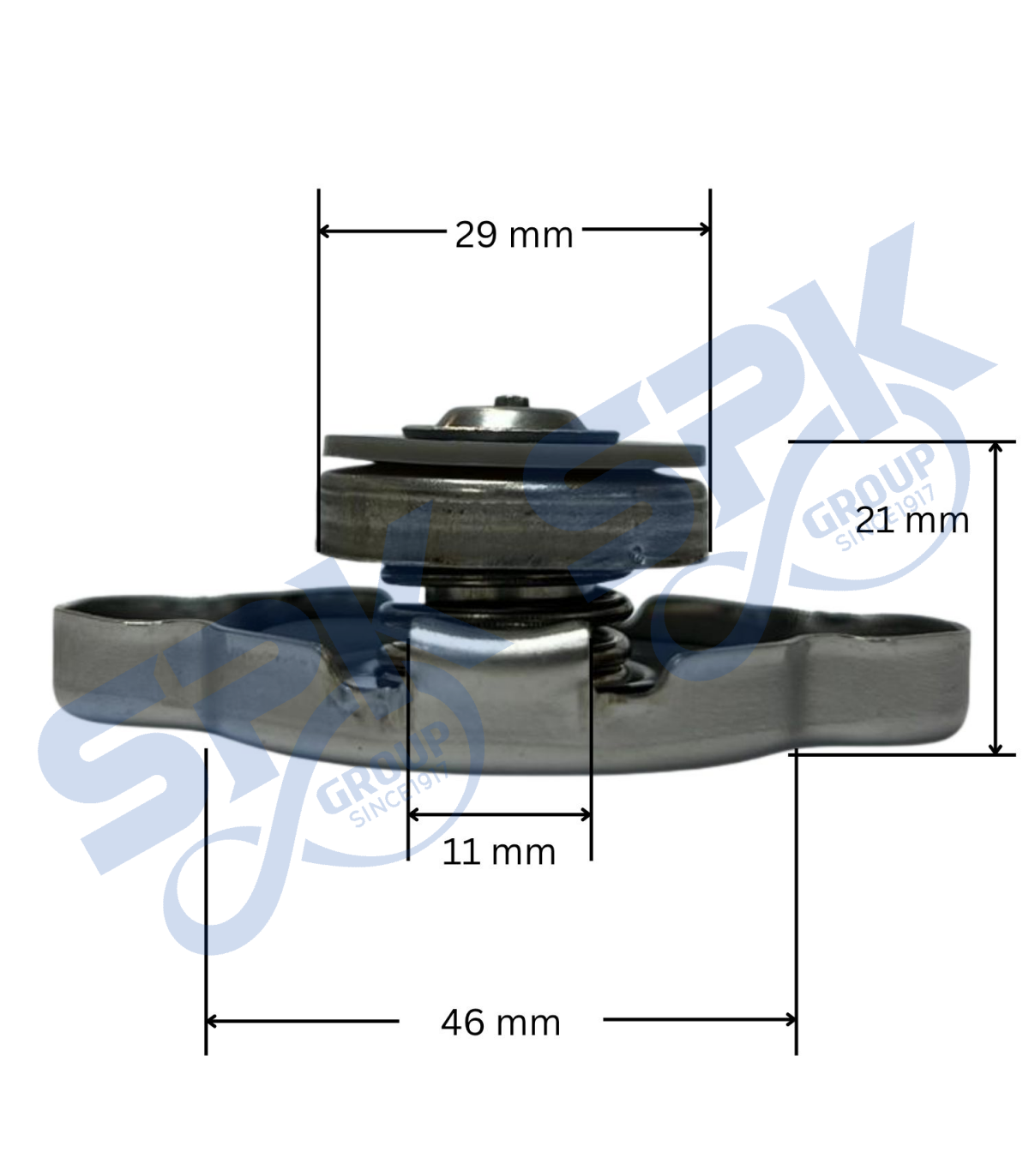

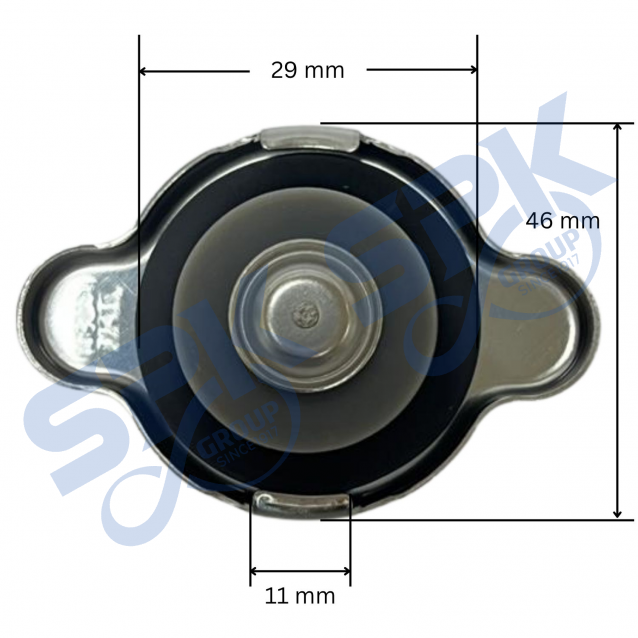

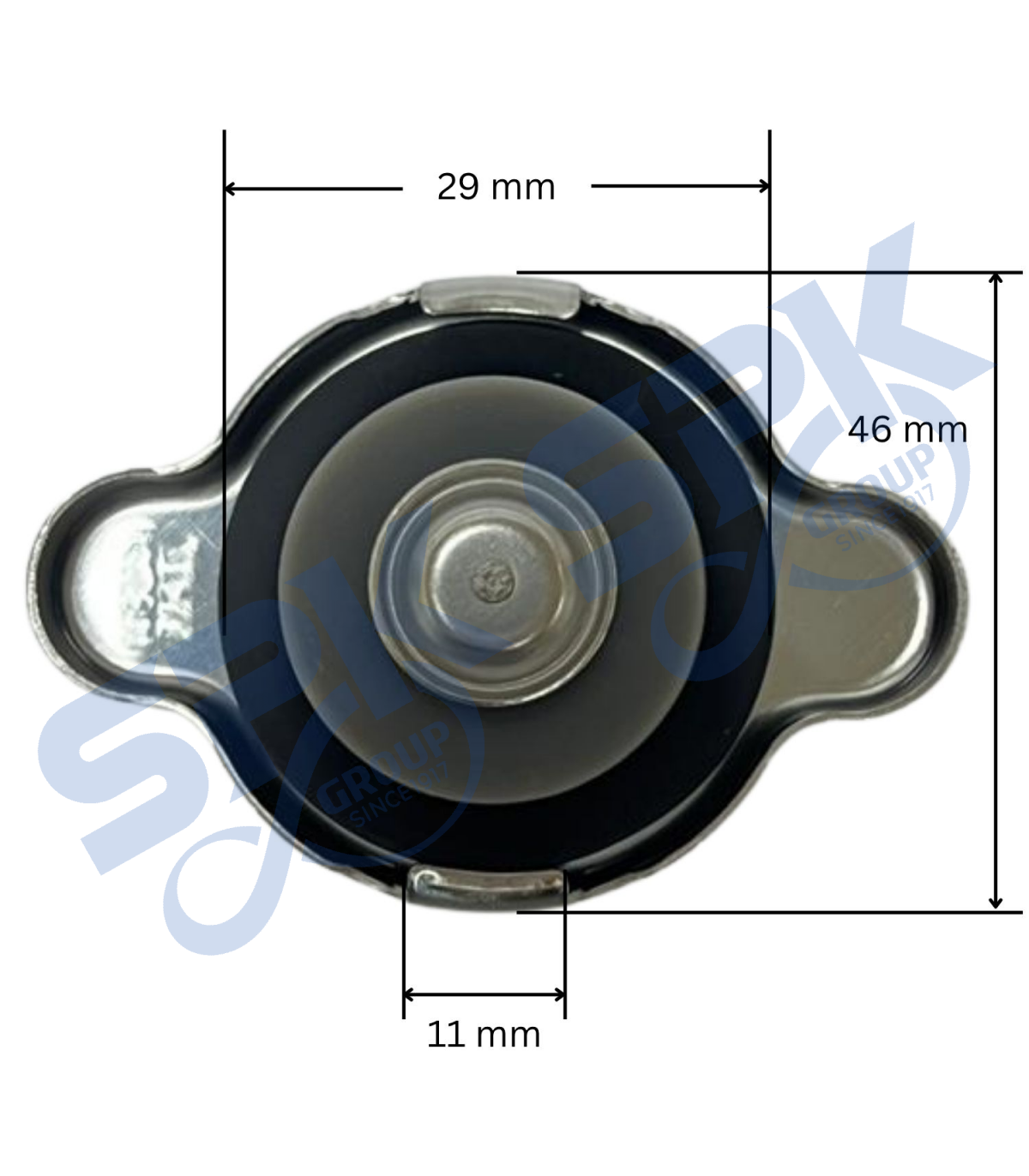

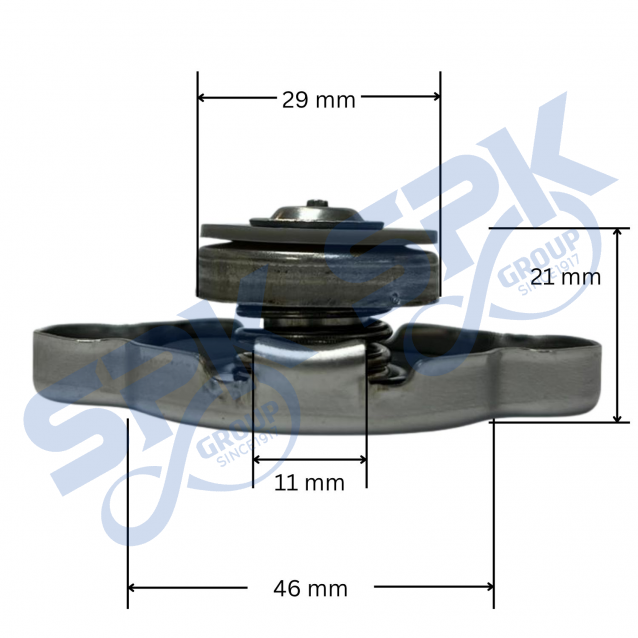

5	R117	1.2	118	O	46	11	21	29
	R124	0.9	88
	R128	1.0	98
	R148	1.1	108
	R153	1.1	108
	R154	1.3	127
6	R125	0.9	88	O	44	11	14	26
	R126	1.1	108
	R164	1.3	127
7	R141	1.05	103	X	60	21	25	39
8	R146	1.05	103	O		21	25
9	R142	1.05	103	X		11	31
